Kennington signal box

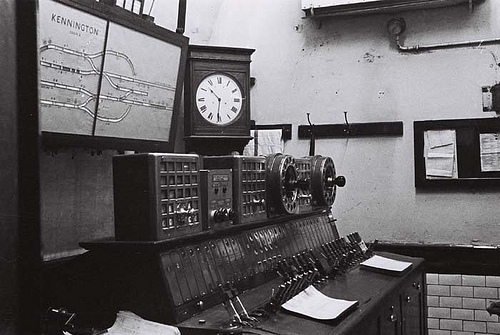

Kennington signal box interior



















This sweat hole was Kennington Signal Box situated at the South end of the North Bound CX platform. It was a two man operation and very fast in the rush hour. Unchanged from the 1920's
Picture is © of Owen Smithers and is reproduced with permission of © Owen Smithers.

Kennington signal box interior with George Hughes in 1959















Kennington & George Hughs 1959



Owen writes 'I must have been on shift with my dear friend George Hughes. Like myself a tear away so the shift a little friendlier than usual since we both enjoyed a joke. '
Picture is © of Owen Smithers and is reproduced with permission of © Owen Smithers.

Kennington

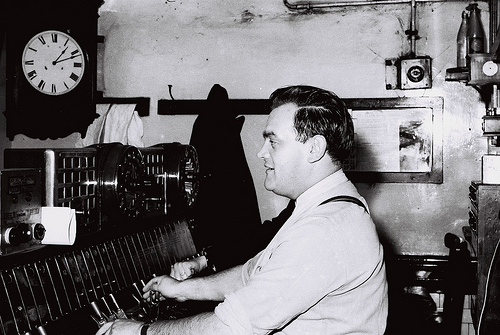

Bill White Kennington box 1955

Owen writes 'Ex Submariner Bill White at the southern Area controls at Kennington. His partner was Bill Deamer but out of sight here. Both were Relief Signalmen.'
Picture is © of Owen Smithers and is reproduced with permission of © Owen Smithers.

Kennington

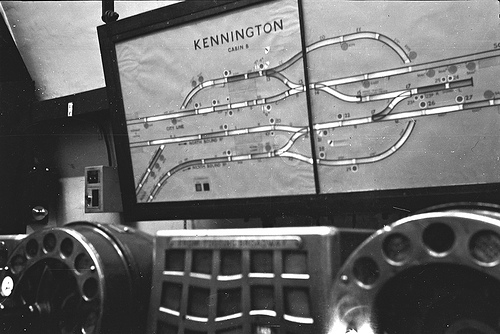

Kennington Track plan 1956

















Owen writes 'It was difficult taking photographs in tunnel signal boxes due to the restrictions of movement. Standing with my back to the wall in the North Bound control area, this was the best I could do.The siding is signaled for two trains until Health & Safety interfered making it a single siding in the late 70's? The loop in an emergency will hold four 7 car trains nose to tail. In my time this has happened twice. The fullest extent of the loop reaches the Oval Station where there is a crew outlet from the Siding.'
Picture is © of Owen Smithers and is reproduced with permission of © Owen Smithers.

Records show that this was a 31 levers lever installation, with 4 points levers, 19 signals with 1 calling on arm

Kennington - Interlocking Machine Room 'V' style frame installation.

Kennington

Kennington interlocking Machine Room in 1965

















Owen writes 'Tucked away in the depths is Kennington's Machine room. This is where all the interlocking is now maintained. I had the experience once of having to run a service during a serious failure from here. Not having to operate interlocking on points previously, it suddenly became a real brain teaser. But after a few goes it remained in your head. ' Picture is © of Owen Smithers and is reproduced with permission of © Owen Smithers.



Diagrams

none availiable.

Adjacent boxes

details to follow.
