Westinghouse Signalling Relays

All signaling systems provided by Westinghouse in the 1950's used their glass style relays, which looked a bit like a fish tank, the wiring is connected via terminals on the top of the realys. Below we can see Parsons Green relay room on London Transport. More details of individual relays are pictured below.

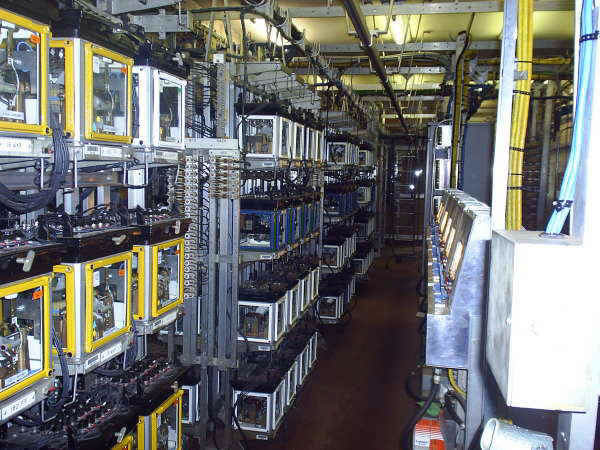

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays.

The interior of Parsons Mead IMR {integrated machine room} showing the 1950's style glass Westinghouse relays, there are at least 5 separate style, which are pictured below in detail.

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, lever No 5 Lock Relay

Westinghouse 1950's style glass relay for lever No 5 Lock Relay {5 LR} operates at 100V AC

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay Lock Proving Relay

Westinghouse 1950's style glass relay for lever 16 Normal Relay Lock Proving Relay (STYLE-F3-12V-DC)

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, Point Indication {WKR}

Westinghouse 1950's style glass relay for Point Indication {WKR} operates at 110V-AC

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, track circuit relay for 'L' Track Relay

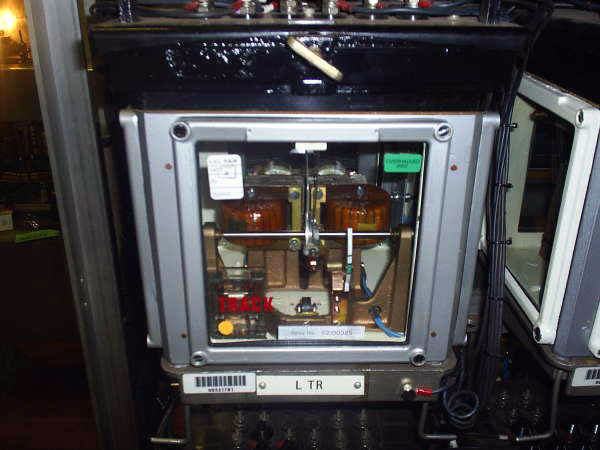

Westinghouse 1950's style glass track circuit relay for 'L' Track Relay {L TR}

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, track circuit relay lever 17 which is a 30 second timer relay

Westinghouse 1950's style glass relay for lever 17 which is a 30 second timer relay {17 JR}
