Liverpool Street signal box

Liverpool street underground signal box

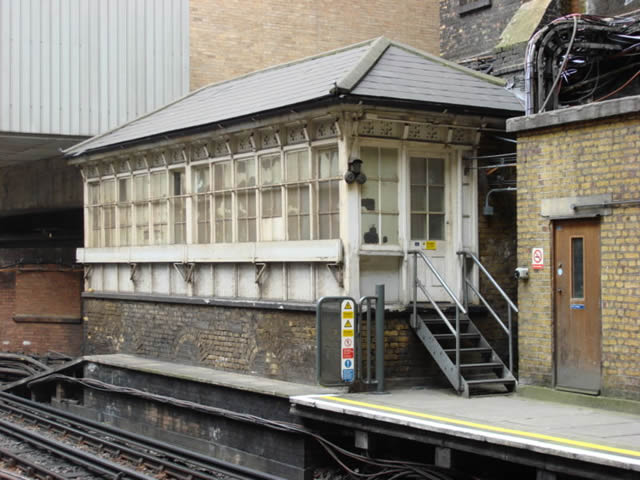

Former signal box on the subsurface lines at Liverpool Street Underground station. Reproduced under the following licenses: Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License, Version 1.2 or any later version published by the Free Software Foundation; with no Invariant Sections, no Front-Cover Texts, and no Back-Cover Texts. A copy of the license is included in the section entitled "GNU Free Documentation License".

Liverpool Street lever frame, now preserved at Bolton Abbey signal box interior view in 2007 with its Westinghouse Style B Lever frame

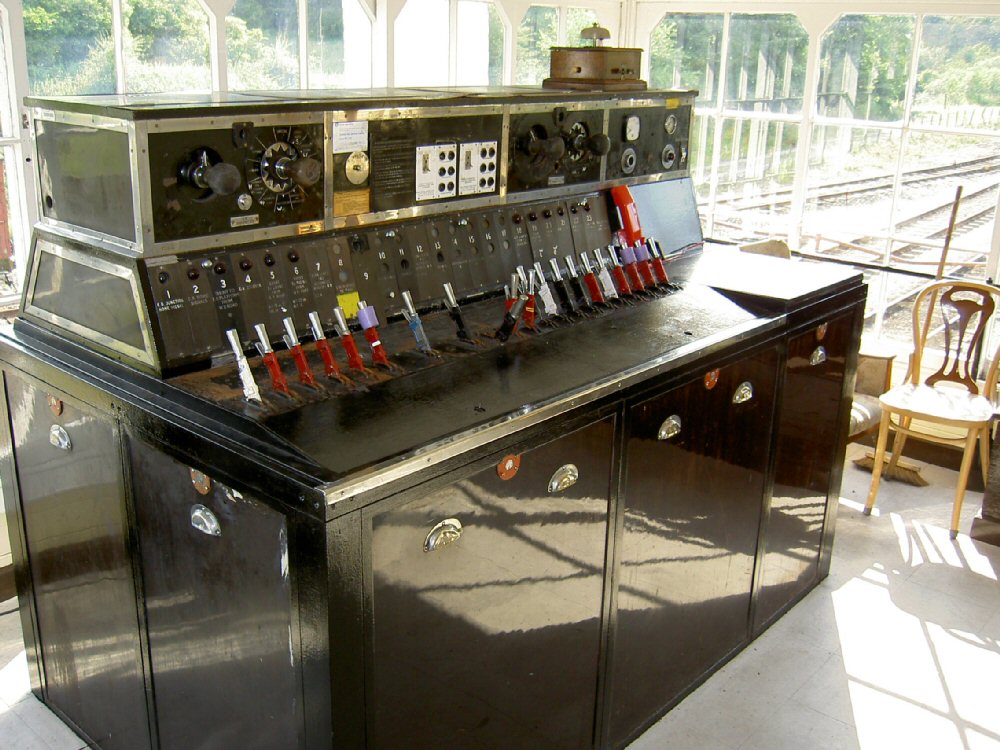

The lever frame is now relocated at the Embassy & Bolton Abbey Steam Railway at Bolton Abbey signal box, which in turn was the ex-Guiseley signalbox. Pictured above in 2007 is the ex Liverpool Street Lever frame which has been re-assembled in roughly the configuration it will retain for its new operation, although there may be further changes as the scheme progresses. Picture by kind permission of © Pete Burke.



Diagrams

Attached a railway and signaling track diagram from London Transport Central Line Extention 1946 - 1957. This diagram can be downloaded opened in your browser in Adobe PDF format provided the Adobe browser is loaded, otherwise you will be able to save the file to your computer until such time as you have an Adobe Reader installed to read the file - Adobe reader is available free, just use the Adobe Reader icon below to get your copy.
