Ely Station North signal box

Ely Station North signal box exterior

Above: The attached picture was taken on 14 November 1991. Reproduced by kind permission of David Ingham, © David A Ingham.

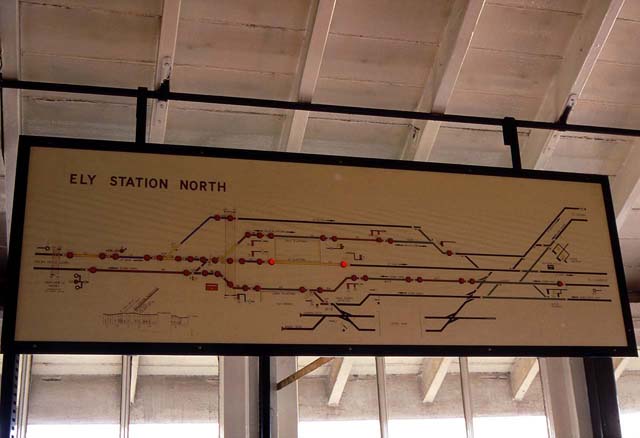

Ely Station North track diagram

Ely Station track diagram As the diagram was one of the Eastern Region that were prone to fading and also not showing up very well when photographed there are two larger copies. If you double click the track diagram will link to these larger pictures. Reproduced by kind permission of David Ingham, © David A Ingham.

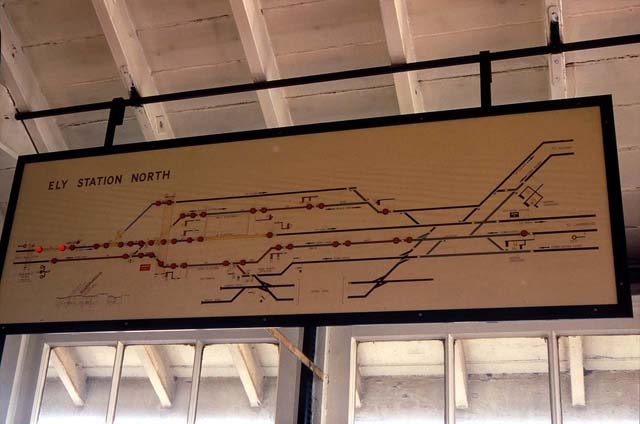

Ely station North track diagram 2

Ely Station track diagram As the diagram was one of the Eastern Region that were prone to fading and also not showing up very well when photographed there are two larger copies. If you double click the track diagram will link to these larger pictures. Reproduced by kind permission of David Ingham, © David A Ingham.

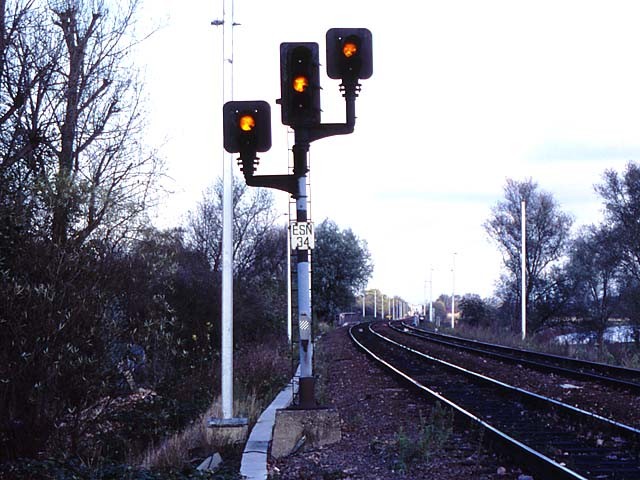

Ely Station North Down Distant Above i The most famous signal at Ely prior to the mechanical boxes closing must have been Ely Station North signal box's Down Starter which when cleared became Ely North Junction signal box's Down Distant signals. The attached picture was taken on 14 November 1991. Reproduced by kind permission of David Ingham, © David A Ingham.

Adjacent boxes

To the south
Ely Station South (0m 641yds away) was the adjacent box until 29 June 1985 when it was closed and Ely Dock Junction (0m 988yds away) became the adjacent box until Ely Station North box closed.

To the north
Ely North Junction (1m 594yds away) was the adjacent box until Ely Station North box closed.
