Rickmansworth signal box

Rickmansworth signal box with its Westinghouse Brake & Signal Co. Ltd. Style 'N' Power Lever Frame was opened by London Transport on the 6th December 1953. It was built to a non standard design and was fitted with a 47 lever Westinghouse 'N' and a push button panel.

A second push button panel was installed in 1955 and a switch panel was installed in 1958.

Rickmansworth

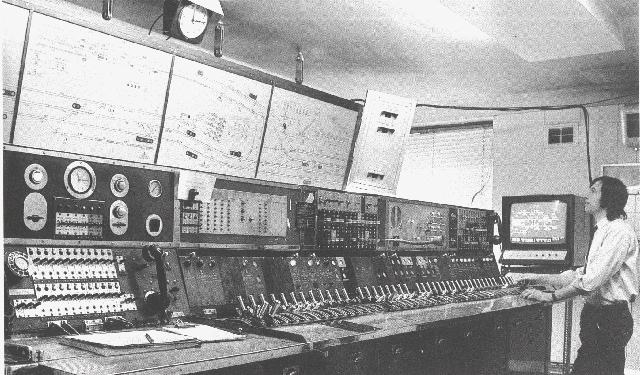

The first moves towards computers for signalling came in 1971 when London Transport cam in the early 1970's when a trail at Rickmondsworth signalbox to control Watford Metropolitian station instead of through the Westinghouse miniature lever frame. The {then} new visual display unit can be seen at the far end of the lever frame.

Rickmansworth

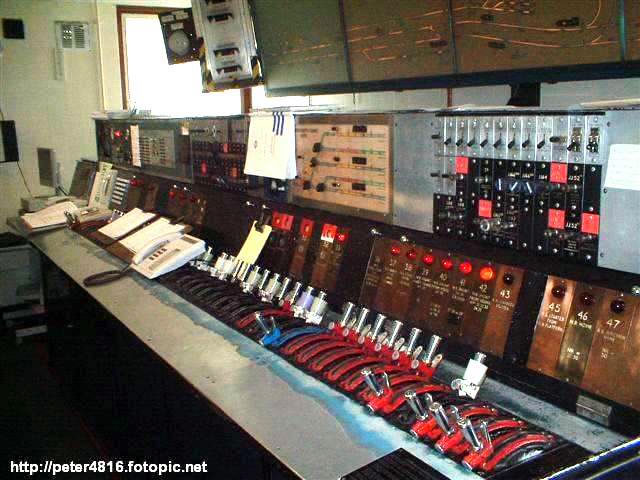

The Westinghouse 'N' Style lever frame is clearly visible with its 47 levers, above which is mounted the various consoles, which are shown below in detail. The Style 'N' power frame is mechanically interlocked between the levers with additional electrical lever locks as required. The frame was formed of 4 x 12 way making a total of {4x12}-1 = 47 levers, as the last “lever” space is unavailable. Taken 1st January 2003. Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

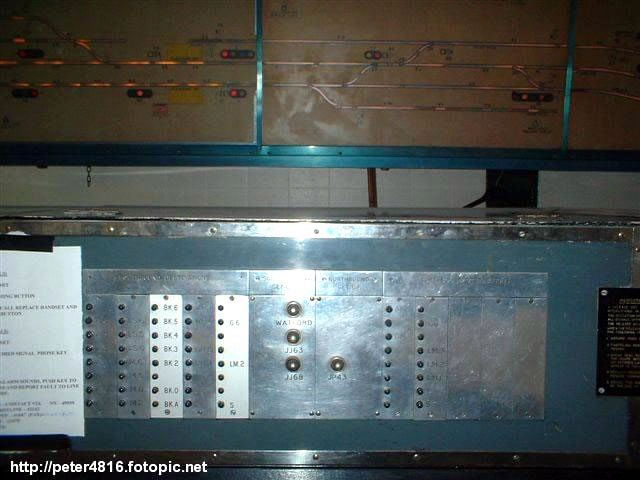

Console 2, Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

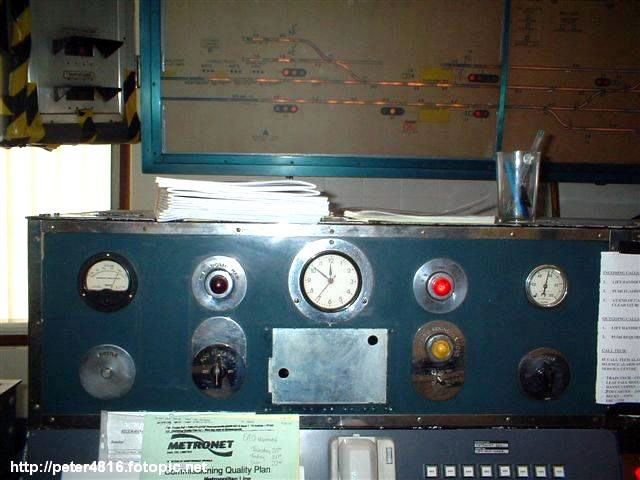

console 3, Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

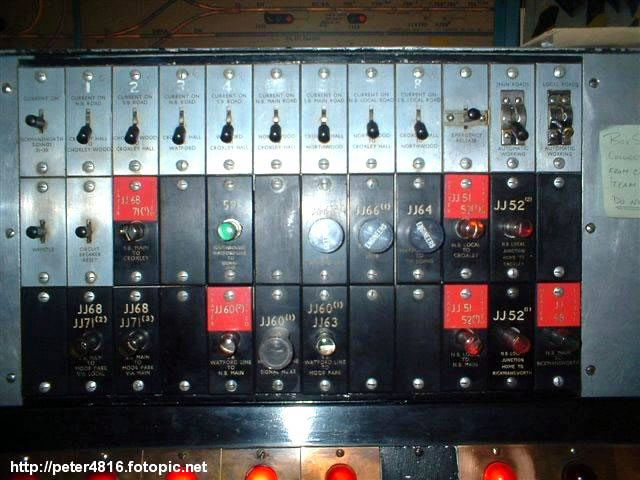

console 4, Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmandsworth

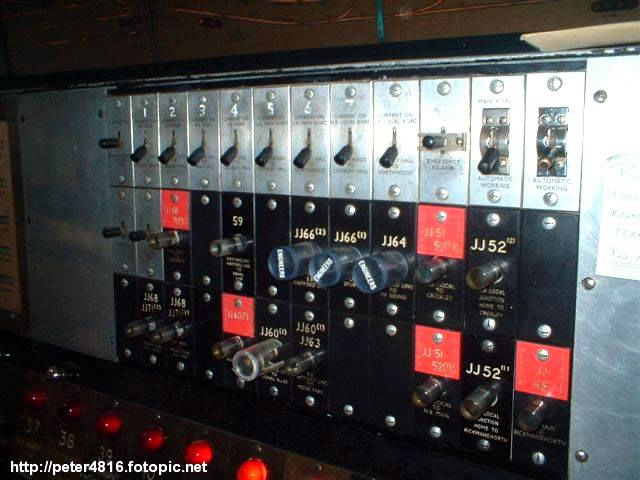

Another view of the same console 4, Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

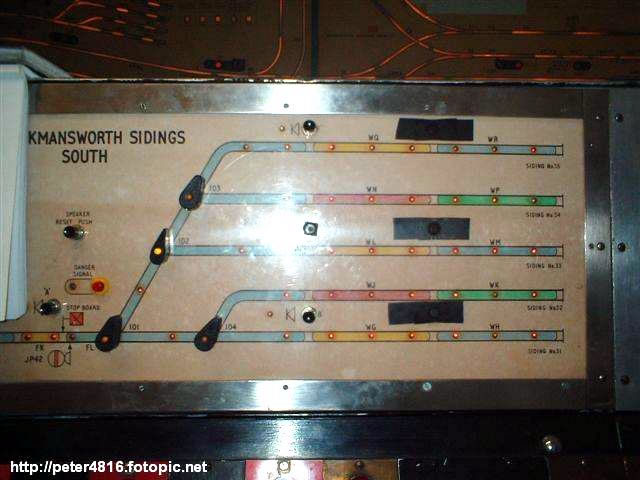

Rickmansworth Siding South control panel which is mounted in the centre of the lever frame. Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

Rickmansworth Siding South control panel which is mounted in the centre of the lever frame. Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Riackmansworth

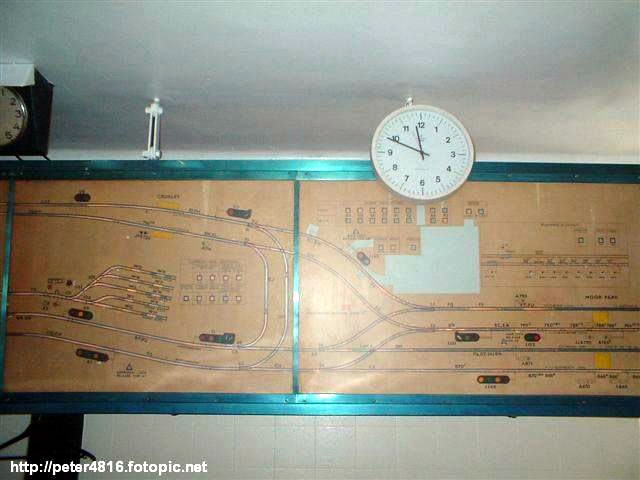

Middle area of the diagram Panel 1, 2 & 3, Panel 3 shows Rickmansworth Siding South at the centre area. Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickmansworth

Middle area of the diagram Panels 3 & 4, Panel 3 shows Rickmansworth Siding South. Panel 4 shows the triangle junction leading. Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Rickamnsworth

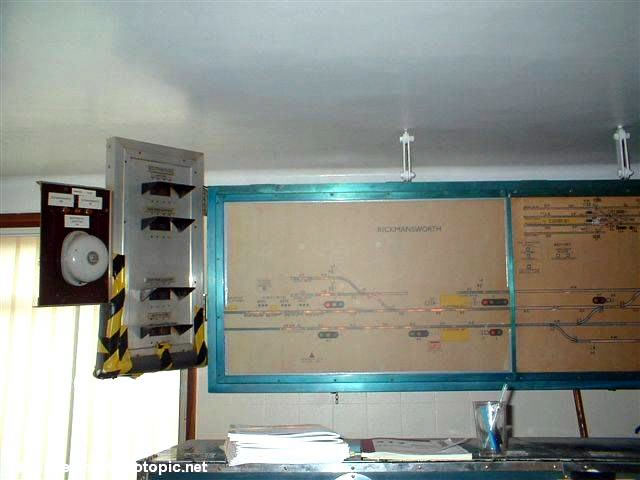

View of diagram at right hand end Panel 4, Taken 1st January 2003 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Diagrams

none availiable.

Adjacent boxes

details to follow.
