Edgeware Road signal box

Edgware Road was opened by the Baker Street & Waterloo Railway on 19 March 1906 fitted with an 11 lever 'B' Styler frame (frame number 52). The box was closed in 1914.

Edgware Road signal box was opened in 10th October 1926 by the Metropolitan Railway. It was built to their Type 4 design and was fitted with a 38 lever Westinghouse 'K' frame (frame number 27). It is, as far as I am aware, still in use.

Edgeware Road signal box taken in 1996, external view

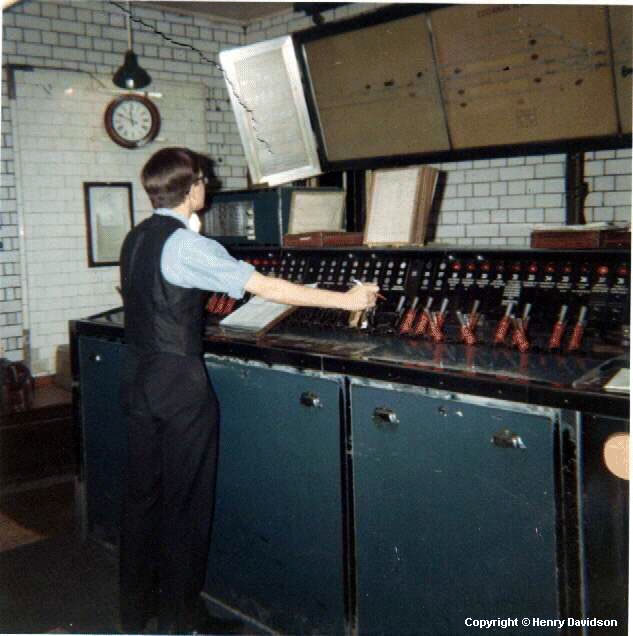

Outside view of the signal cabin the picture was taken on 18th March 1996. Picture by kind permission of © David Ingham. Edgeware Road signal box taken in 1969, with its Westinghouse Brake and Signal Co. Ltd style 'K' miniature power lever frame photograph

The 'K' Style lever frame at Edgware Road circa 1969, this controlled the Hammersmith & City Line, Circle Line and District Line traffic. Relief Signalman Peter Williams is operating the frame. The picture is reproduced by kind permission of the © Henry Davidson.

Edgeware Road signal box taken in 2004, with its Westinghouse Brake and Signal Co. Ltd style 'K' miniature power lever frame photograph

The frame is a Westinghouse Style 'K' Power Frame and was mechanically interlocked between levers with electrical lever locking, The frame was formed of 2 x 12 way section and 2 x 8 sections which makes a total of 39 levers, {2x12}+{2x8}-1 = 39 levers, as the last “lever” space is unavailable. 14 levers levers worked the point, and 18 levers worked the signals with 7 other levers being provided. Taken 23rd September 2004 Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Edgeware Road signal box taken in 2004, with its Westinghouse Brake and Signal Co. Ltd style 'K' miniature power lever frame photograph 2

http://peter4816.fotopic.net/Console 1 for control of xxx located above the first set of levers in the frame Taken 23rd September 2004. Picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net

Edgeware Road signal box taken in 2004, with its Westinghouse Brake and Signal Co. Ltd style 'K' miniature power lever frame and track diagram photograph

The track diagram clearly showing Edgware Road station with its two island platforms in the centre section of the panel. The picture was taken on the 23rd September 2004. The picture reproduced by kind permission of © Peter Nichols, from Peters Rail Signalling Photo's web site located at http://peter4816.fotopic.net/

Diagrams

Currently not available

Adjacent boxes

details to follow
