The box was closed on 13 October 1979 and the frame was moved to the Kidderminster Railway Museum.
Picture by kind permission of Copyright © Peter Burke 2006
Last modified:
|
|||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||
| Covent Garden was opened by the Great Northern, Piccadilly & Brompton Railway on 15 December 1906 fitted with a 12 lever 'B' Style frame. An additional push button panel was installed on 13 May 1962 to control a crossover at Kings Cross (Piccadilly line). The box was closed on 13 October 1979 and the frame was moved to the Kidderminster Railway Museum. |
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||

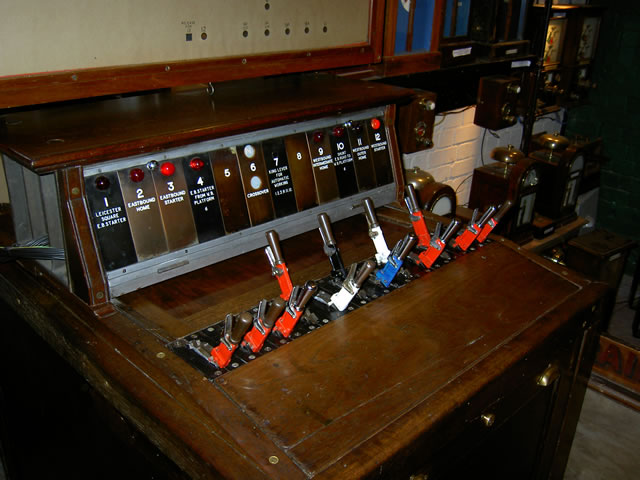

| Attached is a picture taken at Kidderminster Railway museum after the lever frame and diagram had been preserved. Picture by kind permission of Copyright © Peter Burke 2006 | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| The frame is a Westinghouse Style 'B' Power Frame and was mechanically interlocked between levers with electrical lever locking, The frame was formed of 1 x 12 way section which making a total of 12 levers Picture by kind permission of Copyright © Peter Burke 2006 |
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Detail photograph of the diagram located above the levers in the museum, Picture by kind permission of Peter Burke Copyright © Peter Burke 2006 | |||||||||||||||||||||||||||||||||||||||||
| . |
|||||||||||||||||||||||||||||||||||||||||
| This is the electrical rotationg contact assembly switches, looking though the glass, the contacts are located horizontaly behind the levers behind the diagram. Picture courtsey of © Mark Adlington 2009. | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| This is the electrical rotationg contact assembly switches, looking though the glass, the contacts are located horizontaly behind the levers behind the diagram. Picture courtsey of © Mark Adlington 2009. | |||||||||||||||||||||||||||||||||||||||||
| Copyright © Mark Adlington 2009 Last modified: |
|||||||||||||||||||||||||||||||||||||||||
