Needham signal box

Needham signal box with its Westinghouse Brake & Signal Co. Ltd. Style 'L' Power Lever Frame is a reconstruction of the whole of the Westinghouse Brake & Saxby Signal Co. Ltd. Style 'L' Power Lever Frame from the original Battersea Park signal box which was originally installed in 1938.

Needham signal box is now used to control and operate the at the privately operated Stevington and Turvey Light Railway in Bedfordshire. Please note that this line is NOT open to the public. the line has 1 other signalbox. This is a 2ft gauge line railway.

Needham

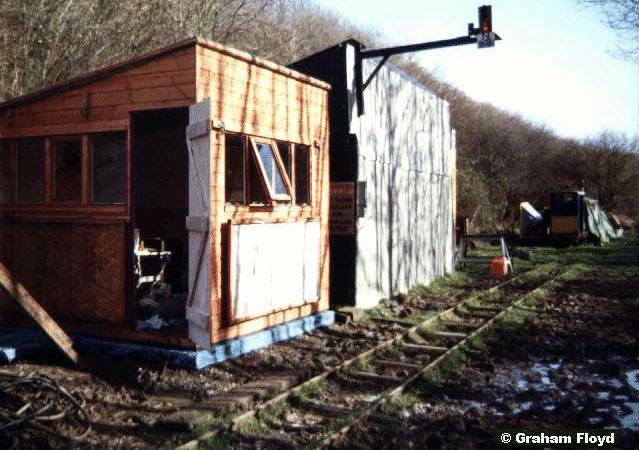

The frame is a Westinghouse Style 'L' Power Frame which is all electrically locked. The frame was formed of 2 x 12 way and 1 x 8 way section which making a total of 31 levers, {2x12}+8}-1 = 31 levers, as the last “lever” space is unavailable. 6 of these levers worked the points, 15 signal levers operated the coloured light signals, and 3 spare levers when the frame was installed. This made the working lever total of 29. pictures above and below by kind permission of © Graham Floyd.

Needham

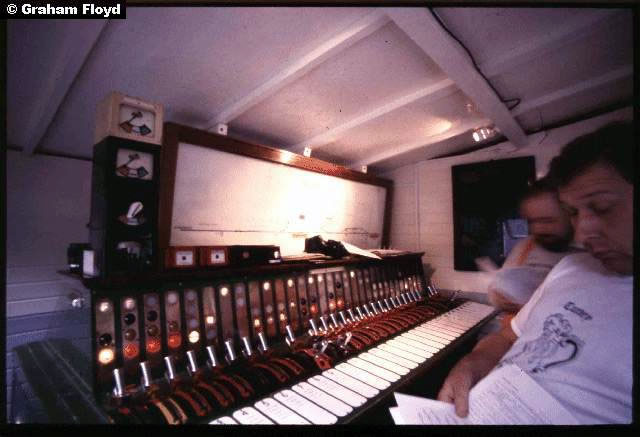

The Westinghouse Brake & Signal Co. Ltd lever frame, with its indicators behind the levers, the 4 glass roundels showed the signal aspect, being Red, Yellow, Green & 2nd Yellow reading from bottom to top.
Clearly visible on the top of the lever frame are the BR 3 position block instruments used in conjunction with the adjacent signal box along with the track diagram

Needham

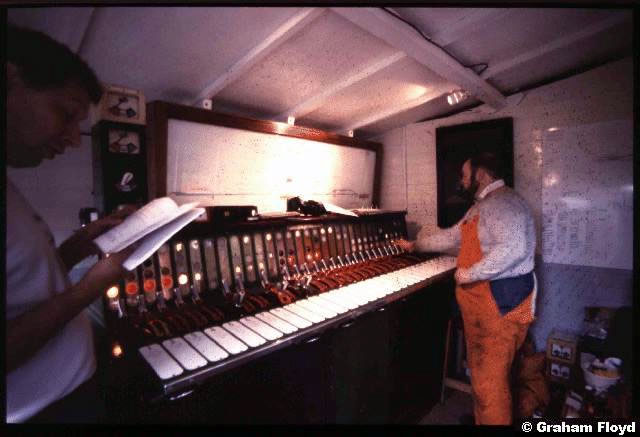

Another view of the signalbox being operated, some people have all the fun!, Picture above and below by kind permission of © Graham Floyd.

Needham

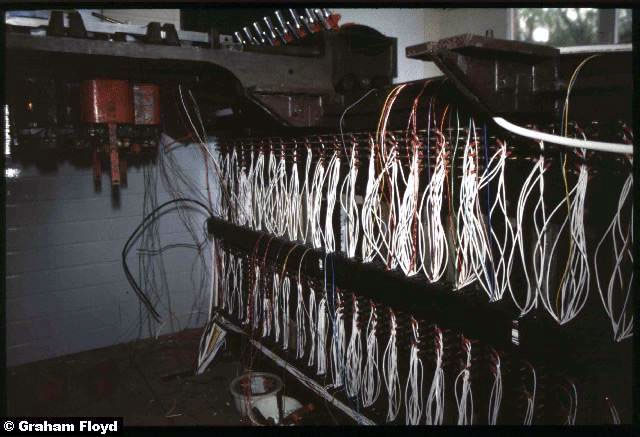

Two very interesting pictures during the installation of the lever frame into its new signal box, the 31 vertical 'D' band electrical contacts can be seen at the front, whilst above these the on top of these can be seen the initial batch of levers and their electric locks have been installed. The bottom picture shows all the white electrical wiring necessary to work the electric interlocks between the levers, as well as the signals and point circuits.
