Parsons Green unmaned signal box

Parsons Mead signal box internior taken recently, with its Westinghouse Brake and Signal Co. Ltd style 'V' miniature power lever frame.

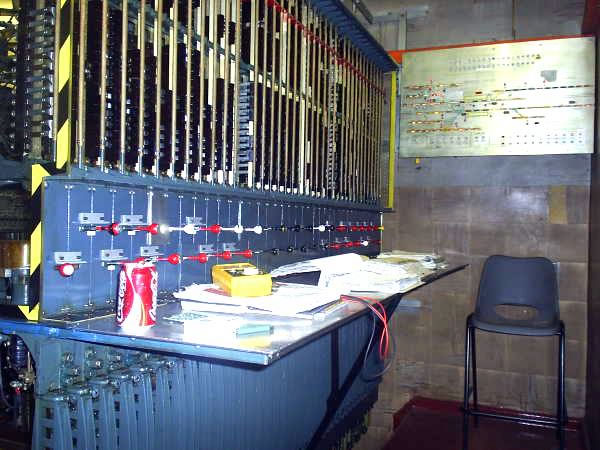

The Westinghouse Style 'V' lever frame in the IMR room at Parsons Green. The power frame and is mechanically interlocked between levers with additional electrical lever locking and is remote controlled. The frame is formed of 2 x 12 way sections.

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays.

The interior of Parsons Mead IMR {integrated machine room} showing the 1950's style glass Westinghouse relays, there are at least 5 separate style, which are pictured below in detail.

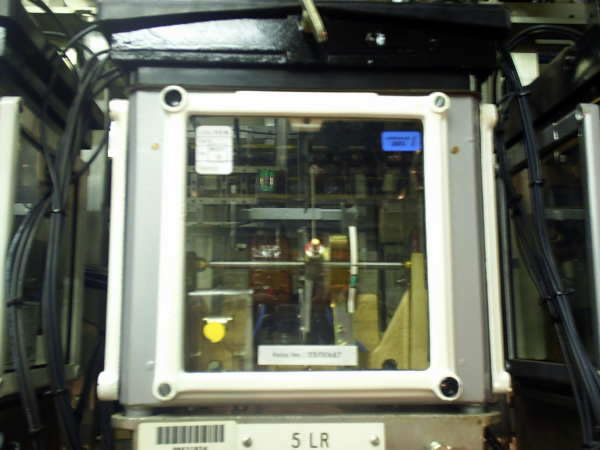

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, lever No 5 Lock Relay

Westinghouse 1950's style glass relay for lever No 5 Lock Relay {5 LR} operates at 100V AC

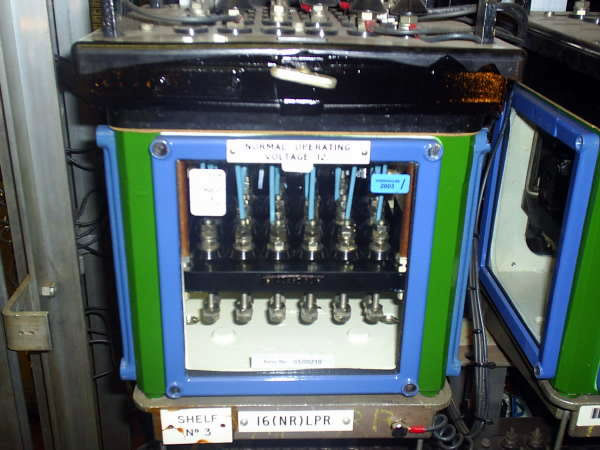

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay Lock Proving Relay

Westinghouse 1950's style glass relay for lever 16 Normal Relay Lock Proving Relay (STYLE-F3-12V-DC)

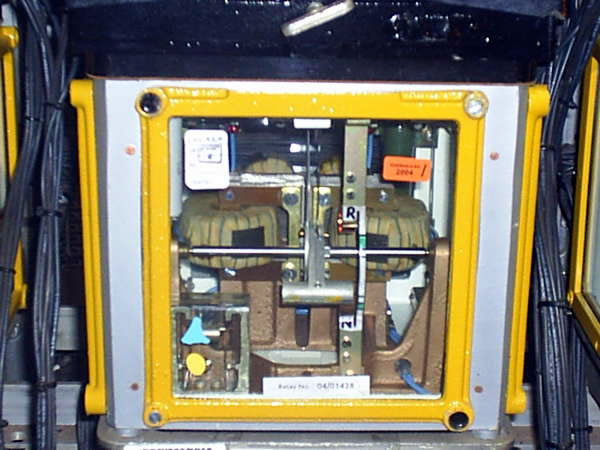

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, Point Indication {WKR}

Westinghouse 1950's style glass relay for Point Indication {WKR} operates at 110V-AC



Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, track circuit relay for 'L' Track Relay

Westinghouse 1950's style glass track circuit relay for 'L' Track Relay {L TR}

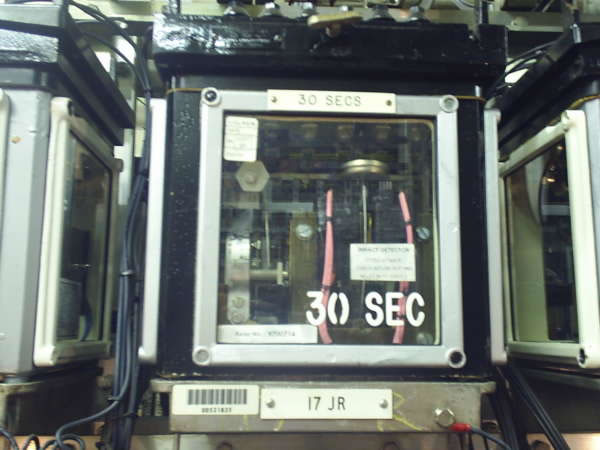

Pasons Green Relay room with its Westinghouse 1950 'glass' style relays, for lever 16 Normal Relay, track circuit relay lever 17 which is a 30 second timer relay

Westinghouse 1950's style glass relay for lever 17 which is a 30 second timer relay {17 JR}
